High Quality Devices for Flight Simulator

Knowledge Base

How to Calibrate my Device?
  1. Turn Off your Device (Unplug USB from computer)
  2. Hold “PEDAL DISC” button
  3. Turn On your Device (Plug back USB to computer)
  4. Keep holding “PEDAL DISC” button at least for 6 seconds then release
  5. Backlight should be blinking
  6. Turn the tiller all the way in one direction, then return it to the center and move it all the way in the other direction
  7. Push “PEDAL DISC” button to finish calibration
  8. Congratulations, your device has been successfully calibrated!
Can I use “PEDAL DISC” button with Flight Simulator as on real airliner?

Nose Wheel and Tiller Setup and Operation available for FlyByWire A32NX and Fenix A320
Please follow instructions bellow:

  1. FlyByWire A32NX https://docs.flybywiresim.com/fbw-a32nx/feature-guides/nw-tiller/#pedal-disconnect-button
  2. Fenix A320 https://www.avsim.com/forums/topic/622647-fenix-a320-pedal-disconnect-button-in-fsuipc/

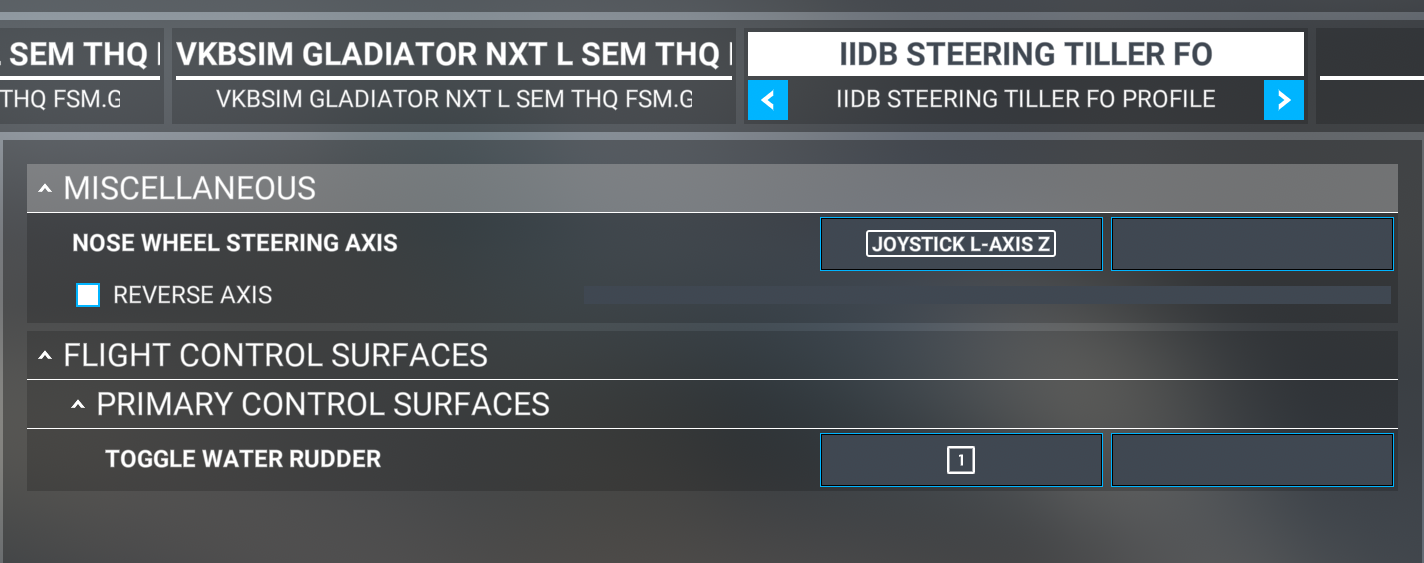

What Flight Simulators support IIDB Steering Tiller?

IIDB Steering Tiller is supported by any flight simulators that have the ability to assign a separate axis to control Steering Tiller including MSFS2020 / MSFS2024 / X-Plane and more.
